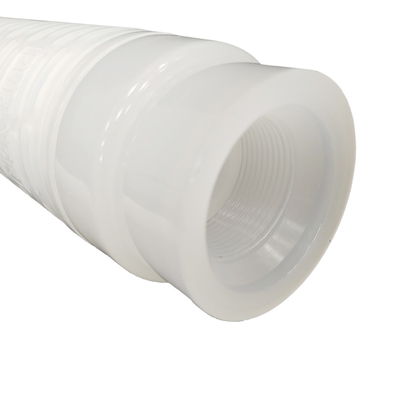

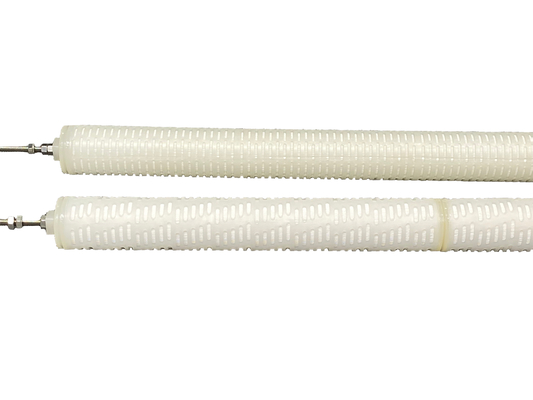

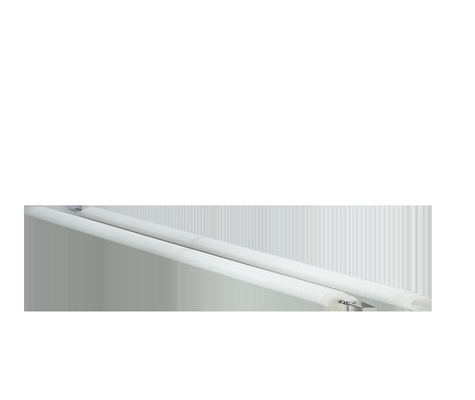

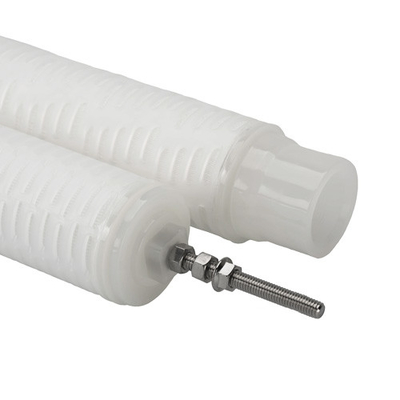

Product Description:
Available in two lengths - 60'' and 70'' - this filter is engineered to deliver maximum operating differential pressure of 3.0 bar at 65℃, making it ideal for use in a wide range of industrial applications. Its superior design and construction ensure that it can efficiently remove even the smallest impurities, leaving your condensate water clean, clear, and free from contaminants.
With an inlet water quality of less than 2000 Ppb, this condensate polisher is highly effective at removing suspended solids, dissolved solids, and other impurities that can affect the performance and lifespan of your equipment. Its large filter area of 6.5㎡ allows it to handle high flow rates while maintaining optimal filtration efficiency.
Our Condensate Polishing Filter is the perfect solution for any industrial plant or facility that requires a reliable, high-performance condensate clarifier. Whether you're looking to improve the efficiency of your condensate polishing process, extend the life of your equipment, or simply ensure that your condensate water meets the highest quality standards, this filter is the ideal choice.
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Condensate Polishing Filter |
| Maxium Operating Differential Pressure |
3.0bar/65℃ |
| Filter Rating |
1μm,4μm,10μm |
| Length |
70'',60'' |
| Max. Filter Temperature |
85°C |
| Filter area |
6.5㎡ |
| Filter Material |
Polypropylene |
| Inlet water quality |
＜2000 Ppb |
| Filter Certification |
ISO 9001, ISO45001 |
| Design Flow Rate |
3.5m³/h~4.5m³/h |
| Cage/Core/End cap |
PP |
| Product Application |
Condensate Clarification, Condensate Filtration, Condensate Strainer |
Applications:
Introducing the PULLNER PHFZ Condensate Polishing Filter, a highly efficient filtration product designed to remove impurities from condensate water in various industrial applications. This product is proudly made in ShangHai, China and is certified with ISO19001, ISO14001, and ISO45001.
The PULLNER PHFZ Condensate Polishing Filter is made with high-quality polypropylene filter material that effectively removes particles with a size of ＜2000 Ppb. Its cage, core, and end cap are made of PP material, making it durable and long-lasting. This product has a maximum operating differential pressure of 3.0bar/65℃ and can withstand a maximum filter temperature of 85°C.
The PULLNER PHFZ Condensate Polishing Filter is suitable for a wide range of industrial applications, including power plants, oil refineries, petrochemical plants, and more. This product is designed to remove impurities from condensate water to prevent damage to equipment and ensure the smooth operation of industrial processes.
The PULLNER PHFZ Condensate Polishing Filter is an ideal product for condensate strainer applications. It effectively removes particles, rust, and other impurities from condensate water, ensuring the smooth operation of industrial equipment. This product is also suitable for condensate purification applications, helping to improve the quality of condensate water and prevent damage to equipment.
The PULLNER PHFZ Condensate Polishing Filter is available for a minimum order quantity of 100 units, and the price can be negotiated. The packaging details include a carton box after a poly bag, and the delivery time is 5-8 working days. We accept various payment terms, including L/C, D/A, D/P, T/T, Western Union, and MoneyGram. Our supply ability is 100 units per day.
Customization:
PULLNER PHFZ Condensate Polishing Filter is a high-quality product that is designed for condensate filtration, polishing, and straining. The product is made in China, ShangHai and comes with ISO19001, ISO14001, and ISO45001 certification for quality assurance.
The product has a design flow rate of 3.5m³/h~4.5m³/h and can handle a maximum filter temperature of 85°C. It has a filter rating of 1μm,4μm,10μm and meets ISO 9001, ISO45001 certification standards.
The inlet water quality for the product should be less than 2000 Ppb. The minimum order quantity for the product is 100, and the price can be negotiated based on the quantity ordered.
The product is packaged in a carton box after a poly bag, and the delivery time is 5-8 working days. Payment terms include L/C, D/A, D/P, T/T, Western Union, and MoneyGram. The supply ability of the product is 100pcs per day.
Application Field:
1. Food and beverage 2. Sea water desalination 3. Power plant condensation 4. Petrochemical engineering
Pullner Production Process:
Company Profile:
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Pullner Laboratory:
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
